Труба DI с покрытием PU желтого цвета
Китай верхний поставщик ISO2531 EN545 полиуретана PU покрытия ковкого чугуна трубы C40 K9 питьевой воды
Standard:ISO2531/EN545
Технические характеристики:
1) The standard of pipe: ISO 2531, EN545
2) Pipe class: K9, C40, C30, C25, etc.
3) Pipe joint: push-on joint(Tyton joint), K type joint, self-restrained joint
4) Effective length: in general, the pipe length is 6m for bulk shipment and 5.7m for container shipment.
5) Gaskets are NBR rubber, natural rubber, SBR rubber or EPDM rubber ring as per ISO4633
6) DN 80 - 2,600 mm
7) High strength, lighter than gray iron, good corrosion resistance, no furring, small flow resistance, easy fixing, long life time
8) Checked by automatic inspection equipment
9) Chemical composition: (%)
1. a) C: 3.5 - 4.0
2. b) Si: 1.9 - 2.6
3. c) Mn:0.15 - 0.45
4. c) P: <0.06
5. d) S: <0.02
10) Mechanical properties
1. a) Tensile strength: ≥420MPa
2. b) Yield strength: ≥300Mpa
3. c) Hardness: ≤230HB
4. d) Elongation%: DN80 - 1000 ≥10 DN1200 - 2200 ≥7
11) Process and testing:
1. a) Induction furnace and treated metal (Chemical analysis of raw material, spheroidizing & Nodularity)
2. b) Casting (Visual check and weight check)
3. c) Heat treatment (Micro structure)
4. d) Hydrostatic test (Pressure test)
5. e) Dimensional checks (Checking pipe length and joint, OD, wall thickness, appearance)
6. f) Zinc spraying (Thickness testing)
7. g) Lining and coating (100% visual check, thickness testing randomly)
8. i) Marking and packing (100% visual check)

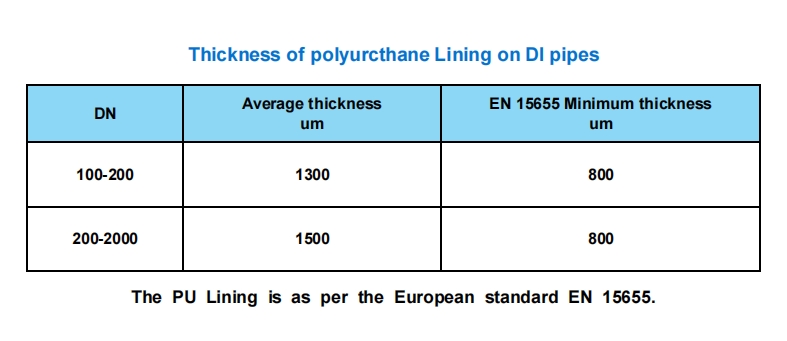

12) The pipe coating can be customized, such as, zinc-aluminum alloy, PU, etc.
Упаковка: в связке со стальными лентами или навалом
Отгрузка: навалом или в контейнерах
